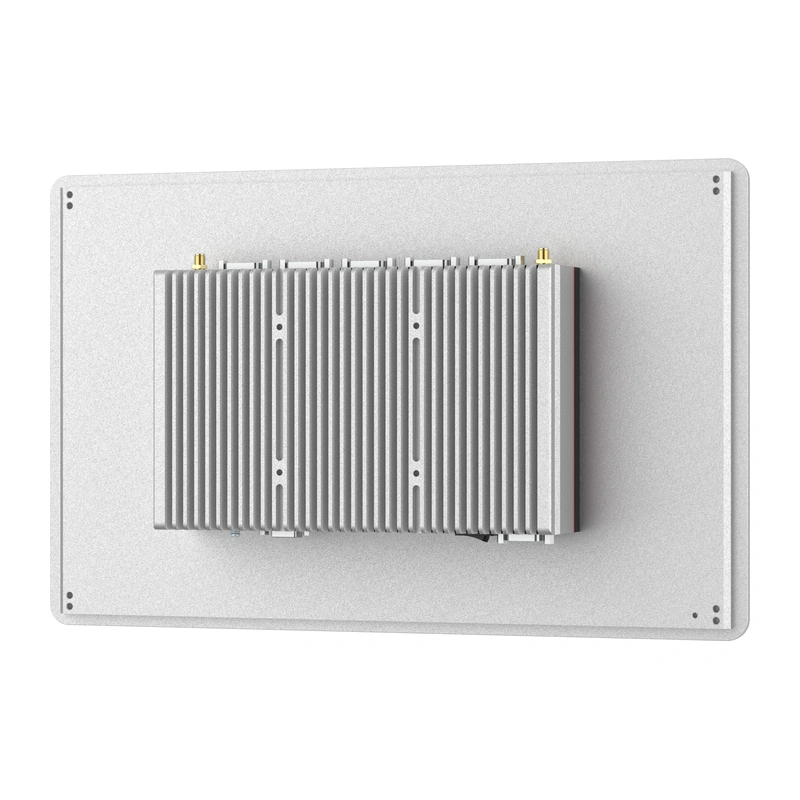

15.6 Inch Dual Gigabit LAN 6 Serial Ports Fanless Industrial Panel PC DTP-C156-6100U
15.6-inch fanless industrial panel PC powered by Intel® 6th Gen Core™ i3, i5 or i7 processors, with Full HD display, dual Gigabit LAN, 6 serial ports and multiple touchscreen options for industrial control and equipment integration.
Ask a Product ManagerDownload Data Sheet
Product Details
Model: DTP-C156-6100UI3 / DTP-C156-6100UI5 / DTP-C156-6100UI7
CPU: IT6Gen
Size: 15.6" Full HD TFT
Touch Screen: Capacitive touchscreen
I/O Interface: IO INTERFACE
Operating system: Windows, Linux
A 15.6″ industrial panel PC built for flexible control, connectivity and installation.
Display and touch
The 15.6-inch Full HD display provides a 1920 × 1080 resolution with 250 cd/m² brightness. Depending on the operator interface and installation environment, the DTP-C156-6100U can be configured with a 10-point capacitive touchscreen, a high-temperature 5-wire resistive touchscreen, or a non-touch display.
Processing platform
Choose from Intel® Core™ i3-6100U, i5-6200U or i7-6500U processors according to the required application workload. The platform supports DDR4 memory up to 16GB and SSD storage up to 1TB.
Industrial I/O
The industrial panel PC provides dual Gigabit Ethernet, 4 × USB 3.0 and 6 serial ports for connecting controllers, instruments, scanners and other external equipment. The serial configuration includes 5 × RS232 and 1 × RS232/RS485, while HDMI and VGA provide additional display connectivity.
Installation and mechanical fit
The DTP-C156-6100U supports front-flush panel mounting as well as 75 × 75 mm VESA mounting. The unit measures 392 × 246 × 62 mm, with a recommended panel cutout of 378 × 234 mm, allowing system integrators to check enclosure space and installation dimensions before deployment.
Protection and operating environment
The front panel meets IP65 protection requirements for installations where the operator-facing surface may be exposed to dust or water. With a standard-temperature SSD, the specified operating temperature is 0°C to 50°C. A configuration using a wide-temperature SSD supports an operating temperature of -20°C to 60°C.
Expansion and wireless options
A Mini-PCIe expansion slot supports optional Wi-Fi, 3G, 4G and Bluetooth configurations, providing additional wireless connectivity when required by the installation.
Product Specifications
Review the key specifications before selecting the DTP-C156-6100U configuration.
| System Parameters |
Model | DTP-C156-6100U13 | DTP-C156-6100U15 | DTP-C156-6100UI7 |
| CPU | Intel®CoreTM i3-6100U | Intel®CoreTM i5-6200U | Intel®CoreTM i7-6500U | |
| Frequency | Dual-core Four-thread, base frequency 2.3GHz |
Dual-core Four-thread, base frequency 2.3GHz |
Dual-core Four-thread, base frequency 2.7GHz |
|
| RAM | Support DDR4-2133/2400MHz high-speed memory,up to 16GB | |||
| Storage | 1*3.0 SATA+1*MSATA3.0 | |||
| I/O Interfaces | Network | 2*Realtek®1000 Mbps RJ-45 Ethernet ports | ||
| Audio | Realtek® ALC662 HDA Codec | |||
| USB | 4*USB3.0 | |||
| Serial Ports | 5*RS232;1*RS232/RS485 | |||
| Expansion Slots | 1*Mini-PCle,support WIFI/3G/4G/BT | |||
| Other Interfaces | 1*HDMI,1*VGA,1*Mic-in,1*Line-out,1*DC IN | |||
| Physical Specifications |
Dimensions(W*H*D) | 392mm*246mm*62mm | ||
| Cutout Dimenisons(W*H) | 378mm*234mm(1.80/1.90mm lager than the actual cutout dimensions) | |||
| Net Weight | 3.24kg | |||
| Operating System | Operating System | Support Windows 7/8/10,Linux | ||
| Power Supply |
Input Voltage | 12VDC | ||
| MaxPower Consumption | TBD | |||
| LCD Panel | Screen Type | 15.6″Full HD TFT | ||
| Resolution | 1920*1080 | |||
| Maximum Colors | 16.2MB | |||
| Backlight | LED | |||
| Backlight MTBF(hours) | 30000hrs | |||
| Pixel Pitch | 0.179*0.179 | |||
| Luminance | 250cd/m² | |||
| Contrast Ratio | 800:1 | |||
| Viewing Angle | (L)89/(R)89/(T)85/(B)85 | |||
| Touch Screen |
Touch Screen Types | 10-point capacitive touch screen,High-temperature 5-wire resistive touch screen,Non-touch screen | ||
| Transmittance | >85% | |||
| Controller | USB port | |||
| Response Time(stylus) | <5ms | |||
| Surface Hardness | Mohs hardness 6H | |||
| Touch Life | 250g/35,000,000 times | |||
| Stroke Life | 250g/5,000,000 times | |||
| Environmental Parameters |
Operation Temperature | 0～50°C(32~122°F)(Using standard temperature grade SSD) | ||
| Custom Version | -20～60°C(-4～140°F)(Using wide-temperature grade SSD) | |||
| Storage Temperature | -20～60°C(-4～140°F) | |||
| Relative Humidity | 10~95%RH@40°℃,non-condensing | |||
| Vibration During Operation | SSD applied:1.5 Grms,5～500 Hz,1 hr/axis | |||
| Shock During Operation | SSD applied:10 G,Half-sine wave | |||
| EMC | CE/FCC Class B | |||
| Waterproofing | The front panel meets IP65 protection class | |||
3D DRAWING & PDF DATA
Want to view the detailed product dime nsions?
Download 3D Drawingfaq
Frequently Asked Questions
Is the DTP-C156-6100U an IP65 industrial panel PC?
The front panel of the DTP-C156-6100U meets IP65 protection requirements. The IP65 rating applies to the front panel rather than the complete enclosure, so installation should be planned according to where dust or water exposure occurs.
What touchscreen options are available?
The DTP-C156-6100U is available with a 10-point capacitive touchscreen, a high-temperature 5-wire resistive touchscreen, or a non-touch display. The appropriate option depends on how operators interact with the industrial panel PC.
How many serial ports does this industrial panel PC provide?
The DTP-C156-6100U provides six serial ports in total: 5 × RS232 and 1 × RS232/RS485. This allows the panel PC to connect with multiple serial devices without relying entirely on external converters.
Does the panel PC support wireless connectivity?
Yes. A Mini-PCIe expansion slot supports optional Wi-Fi, 3G, 4G and Bluetooth configurations.
What operating temperature does the panel PC support?
With a standard-temperature SSD, the specified operating temperature is 0°C to 50°C. A custom configuration using a wide-temperature SSD supports operation from -20°C to 60°C.
